| Name | OTV-M4K Multi-Channel 4K Streaming IPTV Encoder |
| Brand: | Dibview |
| Model: | OTV-M4K |
| Product Name: | 4K Streaming IPTV Encoder |
| Input: | 16 Channel 4K |
| Output: | IP SRT/HTTP/HLS/FLV/RTSP/UDP/RTMP/ONVIF |
| Resolution: | Max. 4K 30fps |
| Encoding: | H.265 H.264 |
| 1U Rack: | Yes |
| Application: | Live Streaming |
Product Description
Overview:

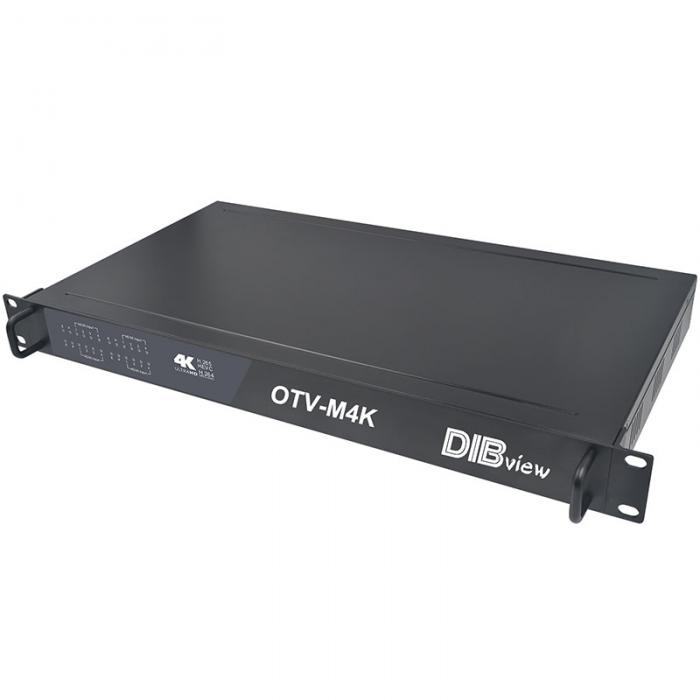

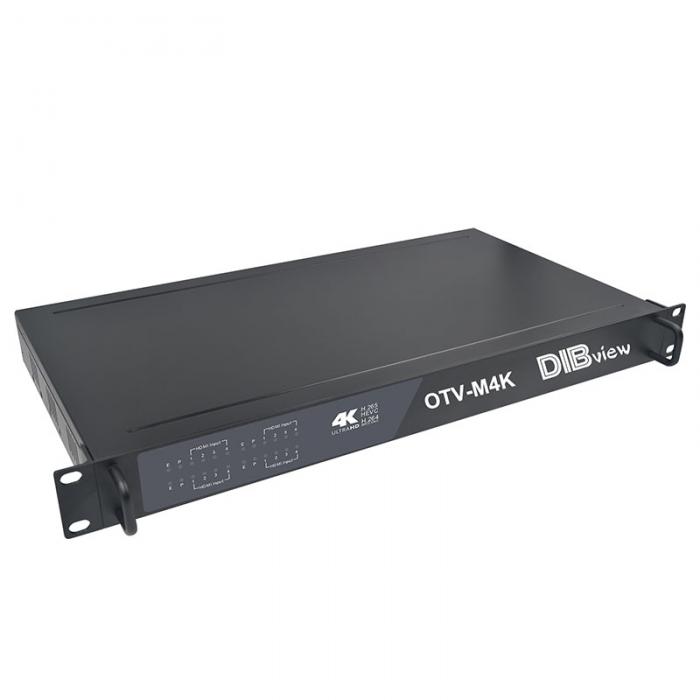

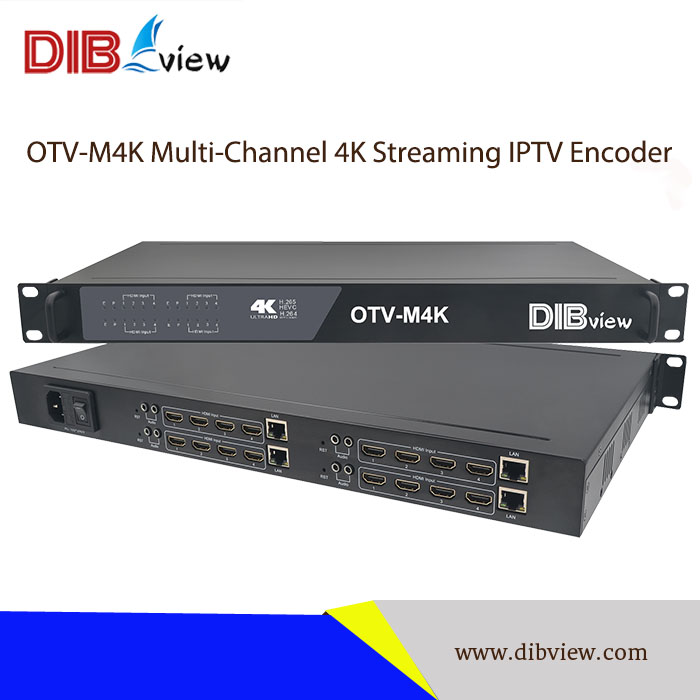

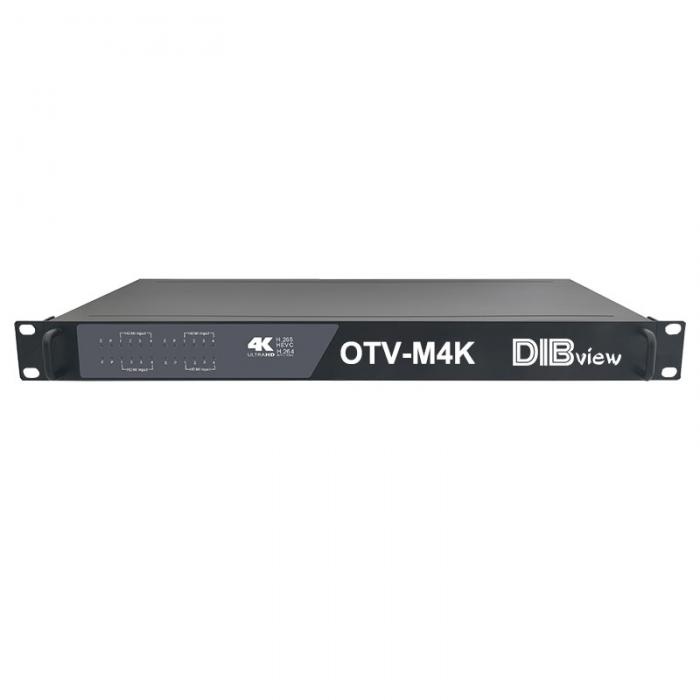

OTV-M4K Multi-Channel 4K Streaming IPTV Encoder, which supports 1-4pcs M001 cards installation, 4/8/12/16 channels HDMI input, the max resolution at 4K@30fps, and output stream resolution up to 4K@30fps. This Encoder provides with HTTP/HLS/FLV/RTSP/ RTMP(S)/UDP/RTP (Unicast/Multicast)/SRT Stream Protocols and ONVIF.
Also OTV-M4K Multi-Channel 4K Streaming IPTV Encoder can be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.
Key Features:
High density, high quality, high performance, high flexibility
Provide Max.16 Channel 4K@30fps HDMI input
Friendly Web Control UI, default IP is 192.168.1.168.
Support SRT/HTTP/HLS/FLV/RTSP/RTMP(S)/UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
Support output Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.
Provide custom resolutions, Main Stream Preset Resolutions–1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.
Support Text and image insert as Stream Logo for Main stream & Sub stream.
Output Stream bitrate adjustable.
Support External Analog audio input.
With Audio digital gain.
Support firmware upgrade.
Support remote control via router port forward.
Easy-to-Use System Management via Web
Technical Specifications:
Item | Description |
Video | |
Video Input: 16*HDMI (4PCS 4 in 1 HDMI Video Encoder Cards)
Supports HDMI Resolution: HDMI 1 & 2 Max support 3840*2160@30fps, HDMI 3 & 4 max support 1080p60fps
Encoding Levels: H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline
Output TS Steam Resolution: HDMI 1 & 2 Max support 3840*2160@30fps, HDMI 3 & 4 max support 1080p60fps, Video FPS: 5-60FPS (when 1080P)
Video Bitrate: 0.1~32Mbps adjustable
Bitrate control: VBR/CBR
TS Protocols: SRT/HTTP/HLS/FLV/RTSP/UDP/RTMP/ONVIF | |
Audio | |
Audio: Input HDMI Audio or 2*3.5mm L/R Analog Audio line in for Mixed Sample Rates: 44.1 kHz, 48.0 kHz Encoding: AAC/AAC+/AAC++/MP3, G.711 (i-Law/a-Law) Bit rate: 12K~320K adjustable ONVIF: G.711 | |
Network | |
Network: 1000Base-T Ethernet interface System Control Panel: Http Web Firmware Update: Supports Remote management | |
The Working Environment | |
Power Supply: AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz Operation temperature: 0 -50°C Storage temperature: -20-80°C Dimensions: 483mm*250mm*44.5mm Weight: 4.5Kg | |
Key Applications:
Digital Signage
Hotel TV system
Recording System
Video Conference
NVR (Net Video Recorder)
Teaching/Campus Broadcast
IPTV (Wowza, Xtream Codes Media Server, etc.)
Online Live Broadcast (YouTube, Ustream, Facebook,Twitter, etc.)
