Your Location : Home >> Product Center >> DVB Broadcast Decoder >> DBD202 IP ASI TO SDI ProHD Decoder

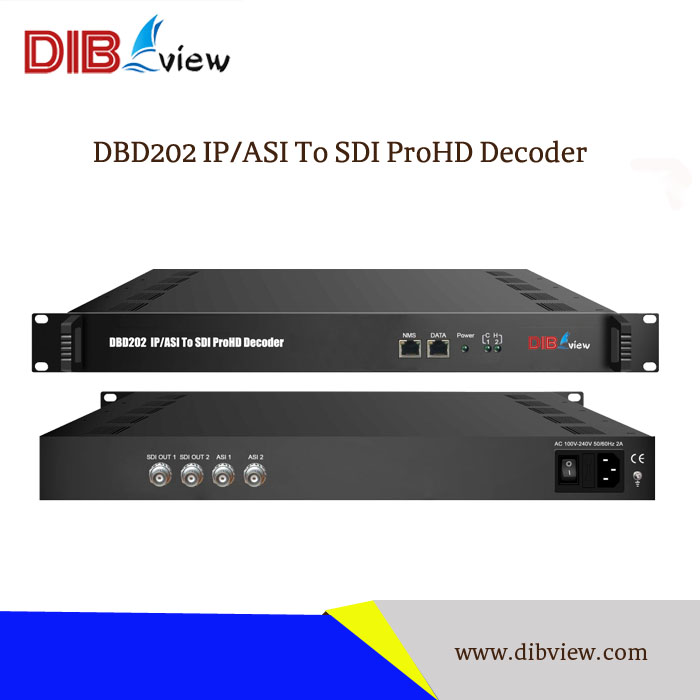

Name	DBD202 IP ASI TO SDI ProHD Decoder
Brand Name:	Dibview
Model Name:	DBD202
Input:	IP & ASI
Output:	SDI and 1IP MPTS
Product Name:	IP ASI TO SDI ProHD Decoder
Video Format:	Mpeg-2 Mpeg4 H.264
Audio Channel:	Dual stereo audios embedded in each port
IP protocol:	UDP
Unicast Multicast:	Support

Product Description

Overview:

DBD202 IP ASI TO SDI ProHD Decoder designed by Dibview for digital tv broadcasting.

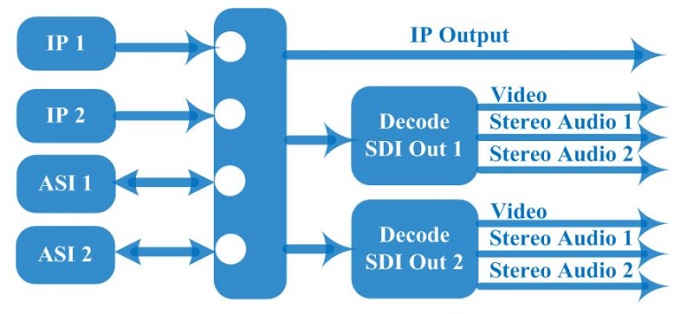

This ProHD decoder support IP stream input, pass Pro decoding process, it can output 2 channels of HD/SD-SDI videos with dual stereo audios embedded in each port.

It also supports 1 IP (MPTS) output and featured with dual bi-directional ASI ports for input and output alternatively.

DBD202 IP ASI TO SDI ProHD Decoder is becoming very popular among DTV system, IPTV applications and digital TV head-end system for DTV operators, broadcast service providers and IPTV integrators etc.

Key Features:

Providing 2 IP input and 1 IP output
2 bi-directional ASI ports with input and output alternatively
2*HD/SD-SDI decoding out with dual stereo audios embedded in each port
MPEG-2 and MPEG-4 AVC/H.264 Decoding for video
MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough for audio
Support CC/Subtitle
Easy manage with web-server remote control

Technical Specifications:

Item	Description
Input
2 IP (MPTS/SPTS, 100M/1000Mbps Ethernet, RJ45, UDP protocol, Unicast/multicast)
2* ASI bi-direction, BNC 75Ω
Decoding Part
Video Format		MPEG-2, MPEG4 AVC/H.264
Interface		2* SDI HD/SD
Video Resolution		480i,480p,576i,576p,720p@50/59.94/60,1080i@50/59.94/60
Audio Format		MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Pass through
Audio Channel		dual stereo audios embedded in each port
Output
2*HD/SD-SDI decoding out
0-2 ASI output
1 IP output over UDP protocol
System
Operation		Web-server
Language		Chinese/English
The Working Environment
Power Supply	AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz
Power Humidity	9~ 89% non-condensed
Operation temperature	0 -50°C
Storage temperature	-20-80°C
Dimensions	482mm x 328mm x 44mm
Weight	5.5Kg
